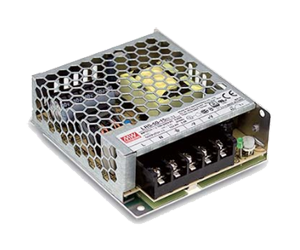

LED Driver MEAN WELL LRS 50W IP20

Availability: in stock

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: €20.68 20.68

Net price: €16.81

* Voltage:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer: Mean Well

Product code: SLT-LRS-50

Description

DESCRIPTION:

LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, provides an output voltage line of 12V and 24V. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-50 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-50 series serves as a high price-to-performance power supply solution for various industrial applications.

FEATURES:

Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
Miniature size and 1U low profile
High operating temperature up to 70°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters (Note.8)
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category III
100% full load burn-in test
3 years warranty

DIMENSIONS: 99*82*30 mm

Technical data

Output power	50W
Output voltage	12V / 24V DC
Input voltage	85-264 V AC
Frequency	47-63 Hz
Efficiency	88%
Working temperature	-30 ... 70 °C
Dimmable	Yes
Dimensions	99 x 82 x 30 mm
IP rating	IP20
