LED Driver MEAN WELL 18W waterproof IP67
Availability:
in stock
Dispatched within:
24 hours
Gross price:
€12.85
Regular price:
Net price:
€10.45
Regular price:
product unavailable
add to wish list
* - Field mandatory
Producer:
Mean Well
Product code:
SLT-LPH-18
Description

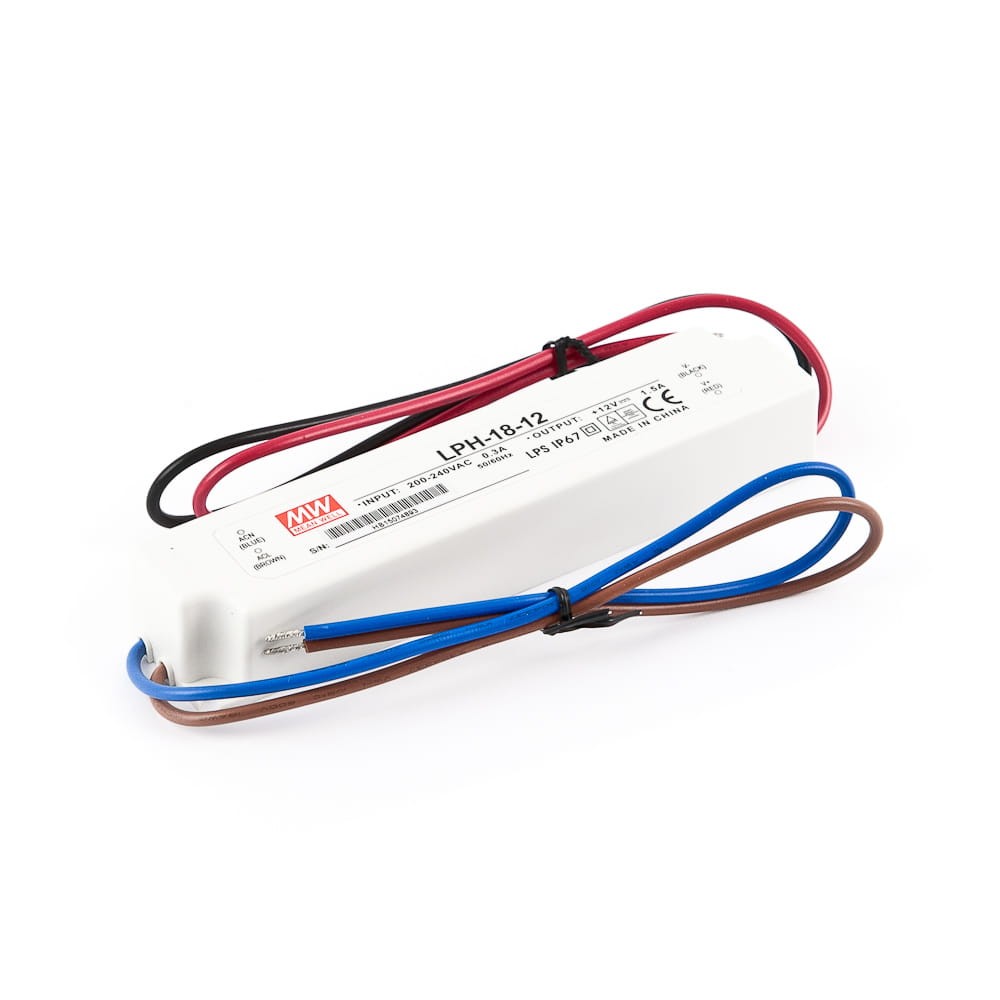

LED DRIVER MEAN WELL LPH-18
available models: 12V (LPH-18-12) and 24V (LPH-18-24)
Features:
- 180-264VAC input only
- Fully encapsulated with IP67 level
- Protections: Short circuit / Over load / Over voltage / Over temperature
- Cooling by free air convection
- Class 11 power unit, no FG
- Pass LPS
- 100% full load burn-in test
- Suitable for LED lighting and moving sign applications
- High reliability I Low cost
- 2 years warranty
Specifications:
Dimensions: 140mm x 30mm x 22mm
Input: AC 180-264V
Output:
LPH-18-12: DC 12V 1.5 A
LPH-18-24: DC 24V 0.75 A
LPH-18-12: DC 12V 1.5 A
LPH-18-24: DC 24V 0.75 A
Output Power: 18W
Internal Protection Rating: IP67
Technical data
| Output power | 18W |
| Output voltage | 12V / 24V DC |
| Input voltage | 180-264 V AC |
| Frequency | 47-64 Hz |
| Efficiency | 80% |
| Working temperature | -30 ... 55 °C |
| Dimmable | Yes |
| Dimensions | 140 x 30 x 22 mm |
| IP rating | IP 67 |
