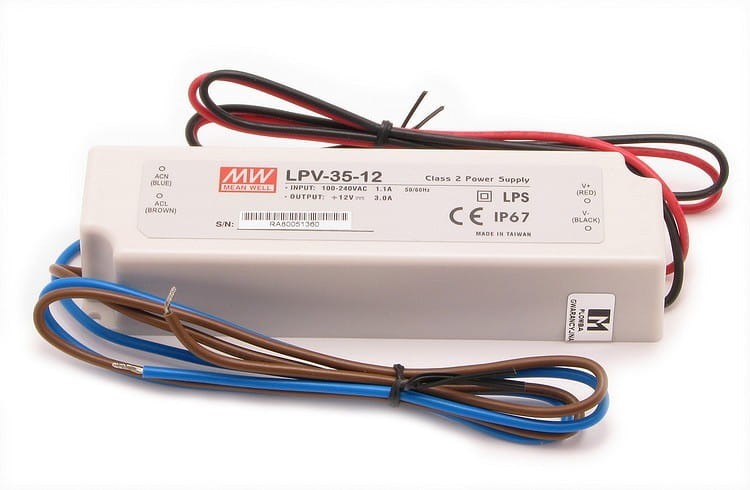

LED Driver MEAN WELL 36W waterproof IP67
Description
LED Driver MEAN WELL LPH-35 - 36W / 12 or 24V to choose - waterproof IP67
Features:
- Constant voltage design
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Fully encapsulated with IP67 level
- Fully isolated plastic case
- Class 2 power unit, no FG
- Pass LPS
- Suitable for LED lighting and moving sign applications
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Specifications:
Dimensions: 148 mm x 40 mm x 30 mm
Input: AC 90V-260V 50/60Hz
Output: DC 12V 3A
Power: 36W
Weight: 0,34kg
IP rating: IP67
Files to download:
Technical data
| Output power | 36W |
| Output voltage | 12V / 24V DC |
| Input voltage | 90-264 V AC |
| Frequency | 47-63 Hz |
| Working temperature | -30 ... 55 °C |
| Dimensions | 148 x 40 x 30 mm |
| IP rating | IP 67 |
